Home > Products > Optical Test & Measurement > Multi-Function Test & Measurement System
Multi-Function Test & Measurement System

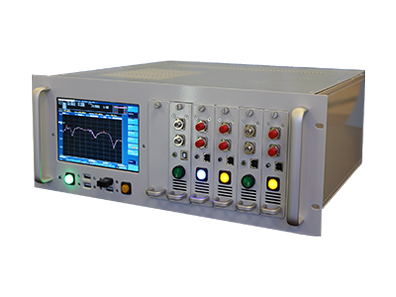

Optoplex Multi-Function Test & Measurement System
Optoplex Multi-Function Test & Measurement System

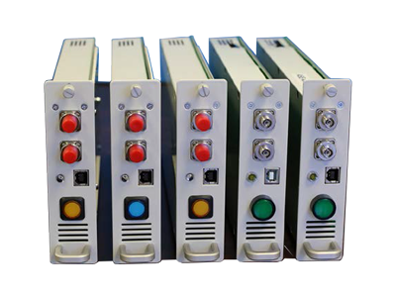

Optoplex Pluggable Test & Measurement Module

Multi-Function T&M System PDF Datasheet

  • Description
  • Features
  • Applications
  • Specification
Product Description - Multi-Function Test & Measurement System

Optoplex’s Multifunction Test and Measurement System (TM100 Series) is designed to provide a flexible and cost effective optical test and measurement solution, particularly for manufacturing lines. The mainframe can be mounted in 19” rack or stationed on desk-top for ease of use. There are many selections of the pluggable modules, from tunable laser, optical spectrum analyzer, EDFA, power meter, ASE light source, optical tunable filter, optical performance monitor, …, etc.

  • Broad selection of pluggable measurement modules
  • Smart display and friendly GUI, enabling user configurable test setup via selected modules
  • Programmable test & measurement recipes – ideal for manufacturing line
  • Remote interface: GPIB, USB, Ethernet and WiFi
Features and Benefits of Multi-Function Test & Measurement System
  • Mainframe with smart display and friendly GUI
  • Built-in WiFi and Bluetooth
  • Many selections of pluggable modules
  • User configurable test setup with selected pluggable modules
  • Smart and intelligent data management
  • Independent access to pluggable module
  • Cost-effective
Applications of Multi-Function Test & Measurement System
  • Optical component characterization
  • WDM component and module manufacturing line test
  • Semiconductor laser manufacturing line – screening test
  • GPON test and manufacturing
  • Transceiver test and measurement
  • Optical amplifier in transmission line measurement
  • Fiber sensing system T&M
  • Optical spectroscopic instrumentation T&M



Performance Specifications - Modules of Optical Spectrum Analyzers
Specifications of other pluggable modules can be seen on the Multi-Function T&M System PDF Datasheet.
Model / TM100-501 TM100-502 TM100-503 TM100-505
Parameter Unit C-Band C+L Band O-Band Full-Band
Spectral Measurement
Wavelength Range nm 1527-1567 1525-1605 1260-1360 1250-1650
Resolution Bandwidth (FWHM) nm 0.05 0.2 0.2 2.0
Wavelength Accuracy nm 0.05 0.2 0.2 2.0
Wavelength Repeatability nm ±0.015 ±0.03 ±0.03 ±1.0
Wavelength Readout Resolution pm 1 1 1 1
Wavelength Linearity nm ±0.01 ±0.01 ±0.01 ±0.01
Power Measurement
Dynamic Range dB +20 ~ -70 +20 ~ -70 +23 ~ -65 +20 ~ -65
Power Accuracy dB ±0.5 ±0.5 ±0.5 ±1.0
Power Repeatability dB ±0.1 ±0.1 ±0.1 ±0.1
Power Readout Resolution dB ±0.01 ±0.01 ±0.01 ±0.01
Linearity dB ±0.1 ±0.1 ±0.1 ±0.1
Optical Rejection Ratio (ORR)
@12.5GHz (0.1nm) 40 35 35
@25GHz (0.2nm) 55 50 50 50
@50GHz (0.4nm) 65 60 60 60
@100GHz (0.8nm) 70 65 65 65
Scanning Time (Full Band) s 5
C-Band s 0.5
